IRFP90N20DPBF

IRFP90N20DPBF - 200V N-Channel HEXFET Power MOSFET, 23 mΩ RDS(on), TO-247AC

9848

Effective Inventory
Go to Inquiry

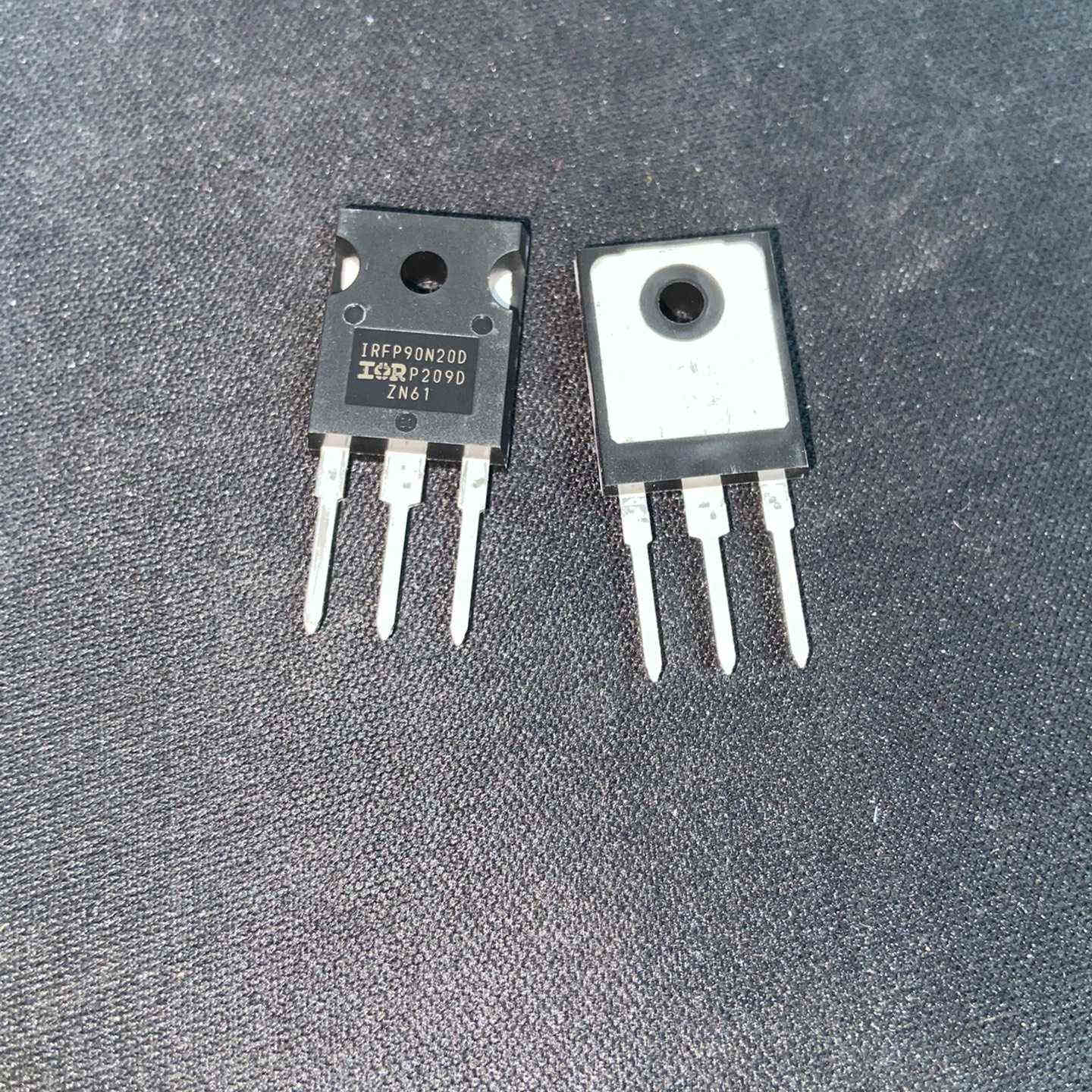

Image for reference only

Manufacturer Part：

IRFP90N20DPBF

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP90N20DPBF is a 200V N-Channel HEXFET Power MOSFET from Infineon Technologies (formerly International Rectifier), part of the HEXFET® product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRFP90N20DPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRFP90N20DPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a TO-247AC package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 200 V
Continuous Drain Current (ID @ 25°C) 94A
Pulsed Drain Current (IDM) 380A
On-Resistance (RDS(on) max @ VGS=10V) 23 mΩ
Gate Threshold Voltage (VGS(th)) 3.0 – 5.0 V
Gate-Source Voltage (VGS) ±30 V
Total Gate Charge (Qg) 180 nC (typ)
Input Capacitance (Ciss) 6040 pF
Power Dissipation (PD) 580 W
Operating Junction Temperature -55 to +175 °C
Package TO-247AC

Features

  • 200 V drain-source voltage rating
  • Advanced HEXFET®
  • Low gate-drain charge for reduced switching losses
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC package

Applications

  • High frequency DC-DC converters
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRFP90N20DPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET® family. It features a drain-source voltage rating of 200 V and continuous drain current of 94A with a maximum on-resistance of 23 mΩ. Packaged in a TO-247AC, this device is optimized for high frequency dc-dc converters. The IRFP90N20DPBF provides low gate-drain charge for reduced switching losses, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRFP90N20DPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (3.0 – 5.0 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 23 mΩ. The HEXFET® cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 200 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • High frequency DC-DC converters
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
