ADUM1411ARWZ

4-channel digital isolator, 2.5kV rms, 2/2 direction, 10Mbps, 75ns delay, 25kV/us CMTI, 2.7-5.5V, default output control, 16-SOIC-W, ADI iCoupler.

8500

Effective Inventory
Go to Inquiry

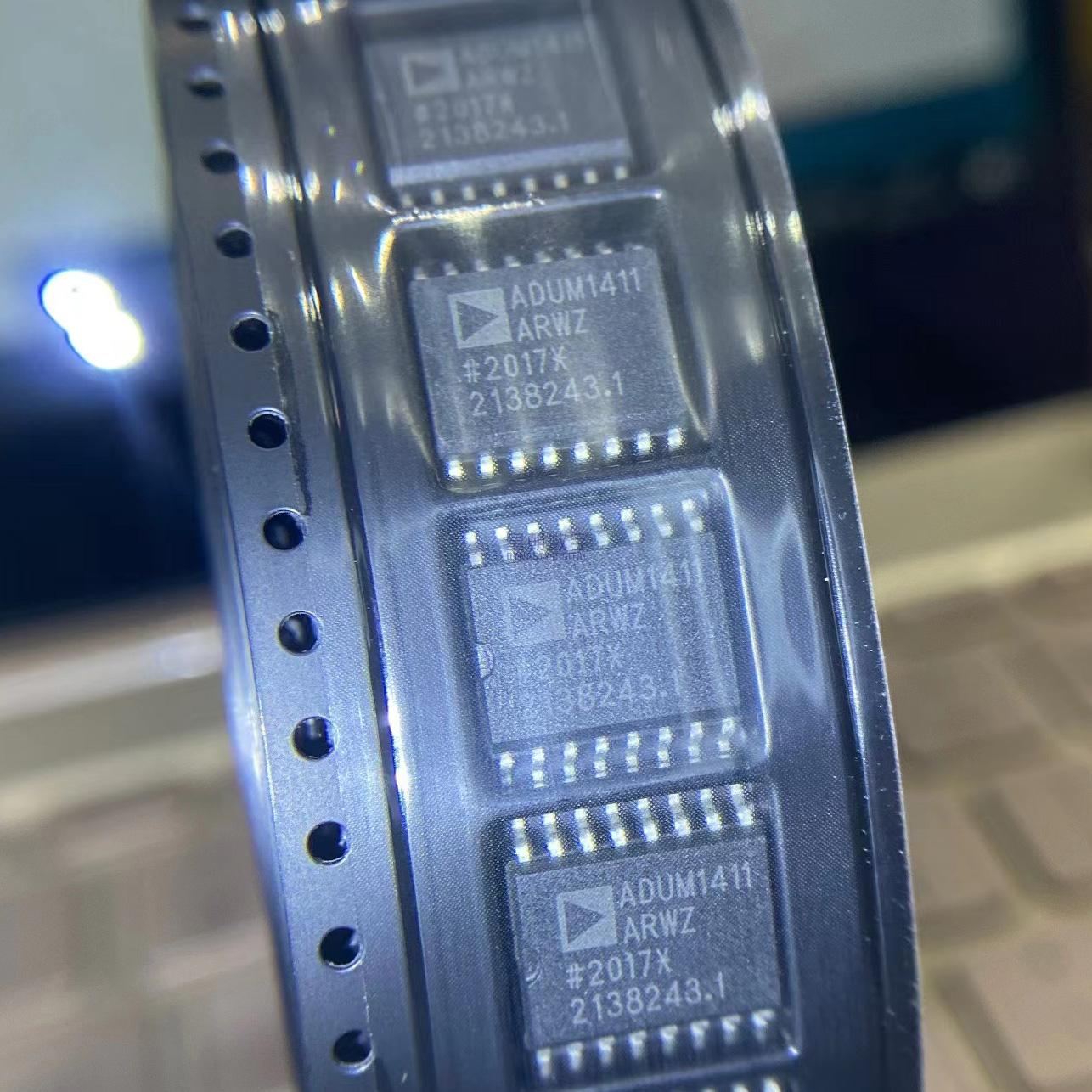

Image for reference only

Manufacturer Part：

ADUM1411ARWZ

Package：

16-Lead SOIC Wide Body

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

AFE4490RHAT

ADV7471BBCZ

ADUM121N1BRZ

ADS1299IPAGR

ADS1256IDBR

ADS1246IPWR

ADS1115IRUGR

ADG719BRMZ

Description

Product Overview

The ADUM1411ARWZ is a four-channel digital isolator from Analog Devices based on i Coupler magnetic isolation technology, with two channels in each direction (2/2 channel configuration). The device provides 2.5 kV rms isolation and supports data rates up to 10 Mbps across all four channels. Combining high-speed CMOS with monolithic air-core transformer technology, the ADuM1411 delivers performance superior to optocoupler alternatives, including lower power consumption (one-tenth to one-sixth of comparable optocouplers), better stability over temperature and time, and tighter channel-to-channel timing matching. The device operates with supply voltages from 2.7V to 5.5V on either side of the isolation barrier, enabling voltage translation between different voltage domains. A default output control pin allows the user to define the output state when input power is absent.

Key Specifications

Parameter Conditions Min Typ Max Unit
Number of Channels 2/2 config 4 independent channels
Channel Direction 2 Side1 to Side2, 2 Side2 to Side1
Isolation Voltage UL 1577, 1 min 2500 V rms
Max Data Rate All channels 10 Mbps
Propagation Delay 3.3V 50 75 ns
Pulse Width Distortion 8 ns
Channel Matching Same direction 15 ns
CMTI (Min) 25 kV/us
Supply Voltage Both sides 2.7 5.5 V
Supply Current/ch Quiescent, 5V 0.9 1.5 mA
Default Output Ctrl SEL pin Controls state when input power absent
DC Correctness Patented refresh Guaranteed
Package 16-Lead SOIC Wide Body (7.5mm)
Operating Temp Industrial -40 +105 C
Safety Approvals UL 1577, CSA

Features

  • 4-channel digital isolator with 2/2 channel direction
  • i Coupler magnetic isolation technology
  • 2.5 kV rms isolation rating (UL 1577)
  • Up to 10 Mbps data rate per channel
  • 75 ns maximum propagation delay
  • Low pulse width distortion: 8 ns max
  • CMTI: 25 kV/us minimum
  • Wide supply: 2.7V to 5.5V on both sides
  • Voltage level translation capability
  • Default output control pin (SEL)
  • Patented refresh ensures DC correctness
  • Low power (1/10 to 1/6 of optocouplers)
  • All four channels independent
  • 16-lead wide-body SOIC
  • -40C to +105C industrial range
  • RoHS compliant

Applications

  • Multi-channel general purpose isolation
  • SPI interface isolation
  • RS-232, RS-485, CAN bus isolation
  • Industrial PLC and distributed I/O
  • Data acquisition and multiplexer isolation
  • Motor control and power electronics
  • Power supply monitoring isolation
  • Medical equipment isolation barriers
  • Test and measurement equipment
  • High voltage sensor isolation

The ADUM1411ARWZ is a four-channel digital isolator from Analog Devices with 2/2 channel configuration (two channels each direction), ideal for isolating bidirectional interfaces like SPI. Built on i Coupler magnetic isolation technology using monolithic air-core transformers integrated with CMOS circuitry, it eliminates the LEDs and photodiodes of optocouplers, removing issues like uncertain current transfer ratios, nonlinear transfer functions, and performance degradation with temperature and aging. The device supports up to 10 Mbps per channel with 75 ns maximum propagation delay. The SEL pin controls the default output state when input power is lost. A patented refresh architecture ensures DC correctness without requiring input toggling. Both sides operate from 2.7V to 5.5V, enabling voltage level translation. The 16-lead wide-body SOIC package (RW suffix, 7.5mm width) provides enhanced creepage and clearance. Specified over -40C to +105C.

The ADUM1411ARWZ uses ADI i Coupler technology with chip-scale air-core transformers to transfer digital signals across an isolation barrier. Each channel has a transmitter encoding input transitions into high-frequency pulses that couple magnetically through the transformer to a receiver on the other side. A patented refresh mechanism periodically sends confirmation pulses to maintain DC correctness between transitions. If input power is lost, outputs default to the state set by the SEL pin. Four independent channels operate simultaneously. Wide dual supply range (2.7V-5.5V each side) enables automatic level translation between different voltage domains.

Pin No. Name Side Description
1 VDD1 Side 1 Side 1 power supply (2.7V-5.5V). Bypass with caps to GND1.
2 VIA Side 1 Channel 1 input (Side 1 to Side 2).
3 VIB Side 1 Channel 2 input (Side 1 to Side 2).
4 SEL Side 1 Select/default output control pin.
5 GND1 Side 1 Side 1 ground.
6 GND1 Side 1 Side 1 ground.
7 VOC Side 1 Channel 3 output (Side 2 to Side 1).
8 VOD Side 1 Channel 4 output (Side 2 to Side 1).
9 VOD Side 2 Channel 4 input (Side 2 to Side 1).
10 VOC Side 2 Channel 3 input (Side 2 to Side 1).
11 GND2 Side 2 Side 2 ground.
12 GND2 Side 2 Side 2 ground.
13 NC — No internal connection.
14 VIB Side 2 Channel 2 output (Side 1 to Side 2).
15 VIA Side 2 Channel 1 output (Side 1 to Side 2).
16 VDD2 Side 2 Side 2 power supply (2.7V-5.5V). Bypass with caps to GND2.
  • 4-channel SPI interface isolation (CLK, MOSI, MISO, CS)
  • RS-485/RS-422 transceiver isolation with control signals
  • CAN bus with additional control signal isolation
  • Industrial PLC I/O module signal isolation
  • Data acquisition multi-channel digital isolation
  • Motor drive and inverter control signal isolation
  • Power supply digital monitoring isolation
  • Medical equipment safety isolation barriers
  • Test and measurement instrumentation isolation
  • High voltage sensor interface isolation
Model Manufacturer Key Difference
ADUM1410ARWZ Analog Devices 4/0 channels (all Side1 to Side2)
ADUM1412ARWZ Analog Devices 0/4 channels (all Side2 to Side1)
ADUM140E1BRWZ Analog Devices 4/0 ch, 150Mbps, 3.75kV, enhanced
ADUM121N1BRZ Analog Devices 2 ch (1/1), 150Mbps, 8-SOIC
ISO7741DBQ Texas Instruments Quad 3/1 digital isolator, 100Mbps, TI
