AFE4490RHAT

Pulse oximeter AFE, 22-bit ADC, 110dB dynamic range, 50pA input noise, LED driver 50-200mA 8-bit, analog + digital ambient cancel, <2.3mW, SPI, VQFN-40, TI AFE4490.

6500

Effective Inventory
Go to Inquiry

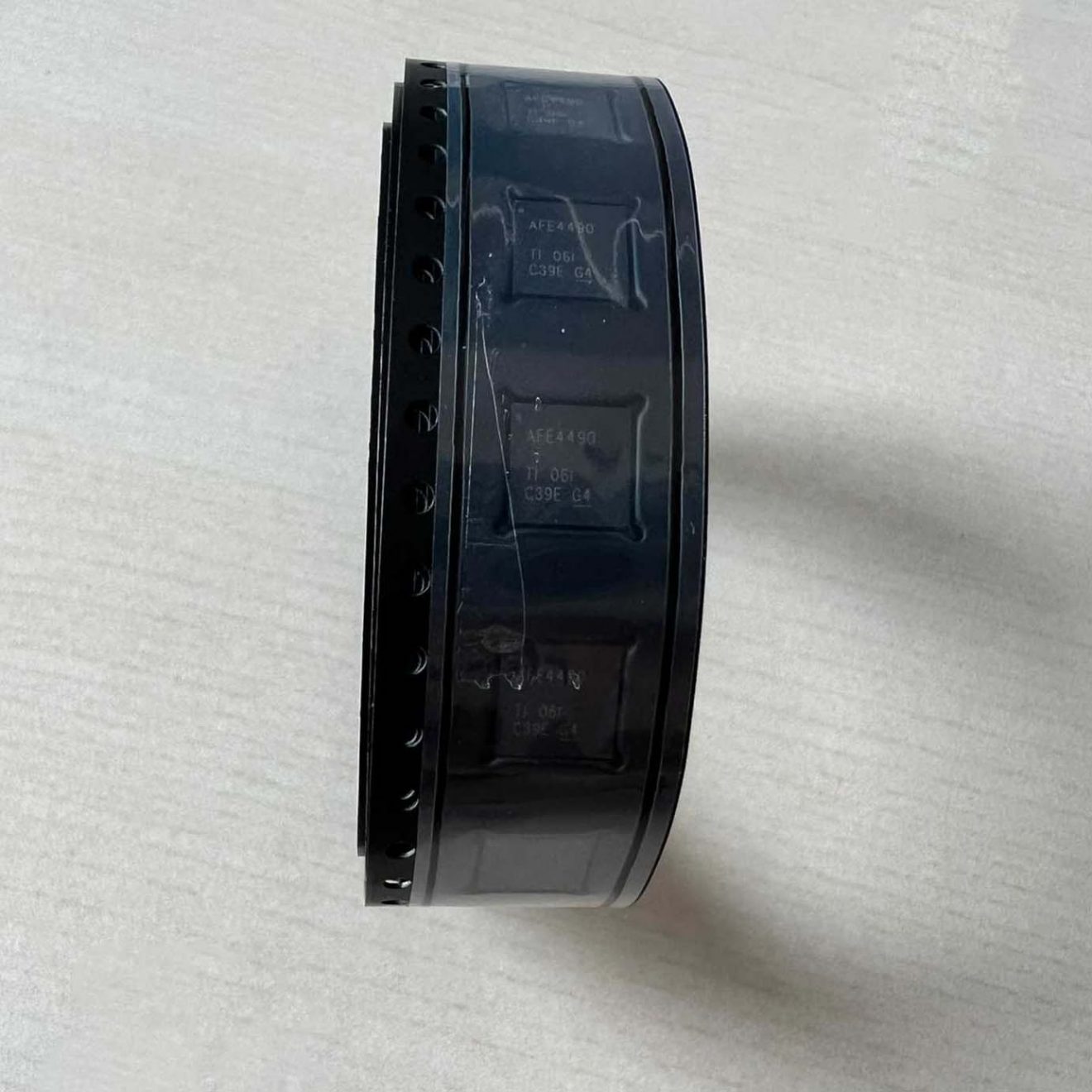

Image for reference only

Manufacturer Part：

AFE4490RHAT

Package：

VQFN-40 (RHA, 6mm x 6mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

ADV7471BBCZ

ADUM1411ARWZ

ADUM121N1BRZ

ADS1299IPAGR

ADS1256IDBR

ADS1246IPWR

ADS1115IRUGR

ADG719BRMZ

Description

Product Overview

The AFE4490RHAT is a fully-integrated analog front-end (AFE) from Texas Instruments designed specifically for pulse oximeter (SpO2) and heart rate monitoring applications. The device integrates a low-noise receiver channel with a 22-bit ADC, a programmable LED transmit section, and comprehensive diagnostics for sensor and LED fault detection. The highly configurable timing controller provides complete flexibility over pulse sequencing and timing parameters. The receiver achieves 110 dB dynamic range, with input-referred noise of 50 pA RMS at 5 uA PD current and 13.5 noise-free bits. An analog ambient cancellation scheme (1 uA to 10 uA selectable) combined with digital ambient subtraction ensures robust performance in varying light conditions. The LED driver supports programmable current ranges of 50/75/100/150/200 mA with 8-bit resolution. Operating from 2.0V to 3.6V (Rx) and 3.0V or 5.25V (Tx), the AFE4490 consumes less than 2.3 mW at 3.0V. Packaged in compact VQFN-40 (6mm x 6mm), it is ideal for clinical pulse oximeters and wearable health monitors.

Key Specifications

Parameter Conditions Min Typ Max Unit
Application Pulse Oximetry (SpO2), HRM
Input Channels Receive path 1 (photodiode input)
ADC Resolution 22 bit
ADC Format Twos complement, MSB first
ADC Full Scale Differential +-1.2 V
Input-Referred Noise 5uA PD current 50 pA RMS
Noise-Free Bits 5uA PD current 13.5 bits
Dynamic Range Full range 110 dB
I-V Amp Feedback 7 settings for LED1/LED2
TIA Full Scale +-1 V
LED Current Range 50/75/100/150/200 mA
LED Current Res 8-bit 256 levels
LED Driver Mode H-Bridge / Push / Pull
LED On-Time Programmable 50us 4 ms
Analog Ambient Cancel Selectable 1 10 uA
Digital Ambient Sub Yes
Power Consumption 3.0V supply <2.3 mW
Quiescent Current Rx, LED off 100 uA
Rx Supply 2.0 3.6 V
Tx Supply 3.0 or 5.25 V
Interface SPI
Fault Diagnostics PD/LED open/short, cable detect
Package VQFN-40 (RHA), 6mm x 6mm
Operating Temp -40 +85 C

Features

  • Fully-integrated AFE for pulse oximeter applications
  • Flexible pulse sequencing and timing control
  • Integrated LED driver (H-bridge, push, pull)
  • 110 dB dynamic range across full LED range
  • LED current: 50/75/100/150/200mA, 8-bit resolution
  • Independent LED1 and LED2 current references
  • Low power: 100 uA + average LED current
  • LED on-time: 50us to 4ms programmable
  • High-dynamic-range receiver channel
  • Input noise: 50 pA RMS at 5uA PD current
  • 13.5 noise-free bits at 5uA PD current
  • Analog ambient cancellation: 1-10 uA selectable
  • Low power: <2.3 mW at 3.0V
  • I-V amplifier with 7 programmable R/C settings
  • Integrated digital ambient estimation and subtraction
  • 22-bit ADC, twos complement output
  • Fault diagnostics: PD/LED open/short, cable detect
  • SPI interface for control and data readout
  • Integrated crystal oscillator
  • VQFN-40 package (6mm x 6mm)
  • -40C to +85C temperature range

Applications

  • Clinical fingertip pulse oximeters (SpO2)
  • Wearable heart rate and SpO2 monitors
  • Fitness trackers and smart watches
  • Medical patient monitoring systems
  • Portable health monitoring devices
  • Industrial light measurement applications
  • Sleep monitoring and apnea detection
  • Home healthcare equipment
  • Hospital bedside monitors
  • Veterinary vital signs monitoring

The AFE4490RHAT is a fully-integrated analog front-end (AFE) from Texas Instruments ideally suited for pulse oximeter (SpO2) and heart rate monitoring. The device combines a low-noise receiver with 22-bit ADC, flexible LED transmit section with programmable current, and comprehensive fault diagnostics in a compact 6mm x 6mm VQFN-40 package. A highly configurable timing controller gives complete control over pulse sequencing and sample timing. The receiver achieves 110 dB dynamic range across the full LED current range, enabling accurate SpO2 even under low perfusion conditions. Input-referred noise is 50 pA RMS at 5 uA PD current (13.5 noise-free bits). Both analog (1-10 uA selectable) and digital ambient cancellation ensure robust operation. The transmitter integrates an LED driver supporting 50/75/100/150/200 mA ranges with 8-bit resolution, independent references for two LED wavelengths. I-V amplifier has seven separate programmable feedback R/C settings per LED. SPI interface for control. Rx: 2.0-3.6V, Tx: 3.0/5.25V, <2.3 mW at 3.0V.

The AFE4490 sequentially drives two LEDs (typically red and IR) through its integrated LED driver while measuring transmitted light via a photodiode on the receiver input. The timing controller orchestrates the pulse sequence: LED1 at programmed current, then LED2, then a dark phase for ambient measurement. Photodiode current flows into a TIA with programmable feedback R/C — seven separate settings per LED optimize gain for each wavelength. An analog ambient cancellation DAC subtracts programmable DC current (1-10 uA) at the TIA input to prevent saturation. The amplified voltage is digitized by a 22-bit ADC (+/-1.2V full-scale, twos complement). Digital ambient subtraction further removes residual ambient using the dark-phase measurement. The ratio of AC/DC at both wavelengths enables SpO2 and heart rate calculation by the host processor. Controlled via SPI. External crystal provides clock reference.

Pin No. Name Type Description
1-4 GND GND Ground pins.
5 INP Analog In Photodiode positive input (TIA non-inverting).
6 INM Analog In Photodiode negative input (TIA inverting).
7 TIA_GND GND TIA ground.
8 VCM_SHIELD Analog Out VCM shield output for input guard.
9-10 RX_SUP Power Receiver supply (2.0V to 3.6V).
11 CE Digital In Chip enable (active high). Pull-down.
12 SCLK Digital In SPI clock input.
13 SPI_SIMO Digital In SPI slave in / master out.
14 SPI_SOMI Digital Out SPI slave out / master in.
15 SPI_CS Digital In SPI chip select (active low). Pull-up.
16 PD_ALM Digital Out Power-down alarm / data ready.
17 DIAG_END Digital Out Diagnostics complete flag.
18-19 TX_SUP Power Transmitter supply (3.0V or 5.25V).
20 TXP Analog Out LED driver positive output.
21 TXN Analog Out LED driver negative output.
22-24 TX_GND GND Transmitter ground.
25-28 GND/RX_SUP Mixed Ground and receiver supply pins.
29 CRYSTAL_P Analog Crystal oscillator pin 1.
30 CRYSTAL_N Analog Crystal oscillator pin 2.
31-32 GND GND Ground pins.
33-38 NC — No internal connection.
39 IO_SUP Power Digital I/O supply (1.8V to 3.6V).
40 RESET Digital In Hardware reset (active low). Pull-up.

Note: Exact pinout may vary. Refer to TI datasheet SBAS602H for precise layout.

  • Clinical fingertip pulse oximeters (SpO2 + HR)
  • Wearable fitness trackers with optical HRM
  • Smart watches with SpO2 and HRM
  • Portable medical pulse oximeters
  • Hospital bedside patient monitors
  • Sleep apnea detection devices
  • Home healthcare monitoring equipment
  • Veterinary vital signs monitors
  • Industrial light measurement
  • High-sensitivity PPG systems
Model Manufacturer Key Difference
AFE4404RHAT TI Ultra-small WLCSP, 3 LED, wearable
AFE4950YBGR TI PPG + ECG combo, DSBGA, wearable
AFE4420RHAR TI 3-channel PPG AFE, higher integration
MAX86150 Maxim PPG + ECG biosensor module
ADPD1080 ADI Photometric front-end, ADI alternative
