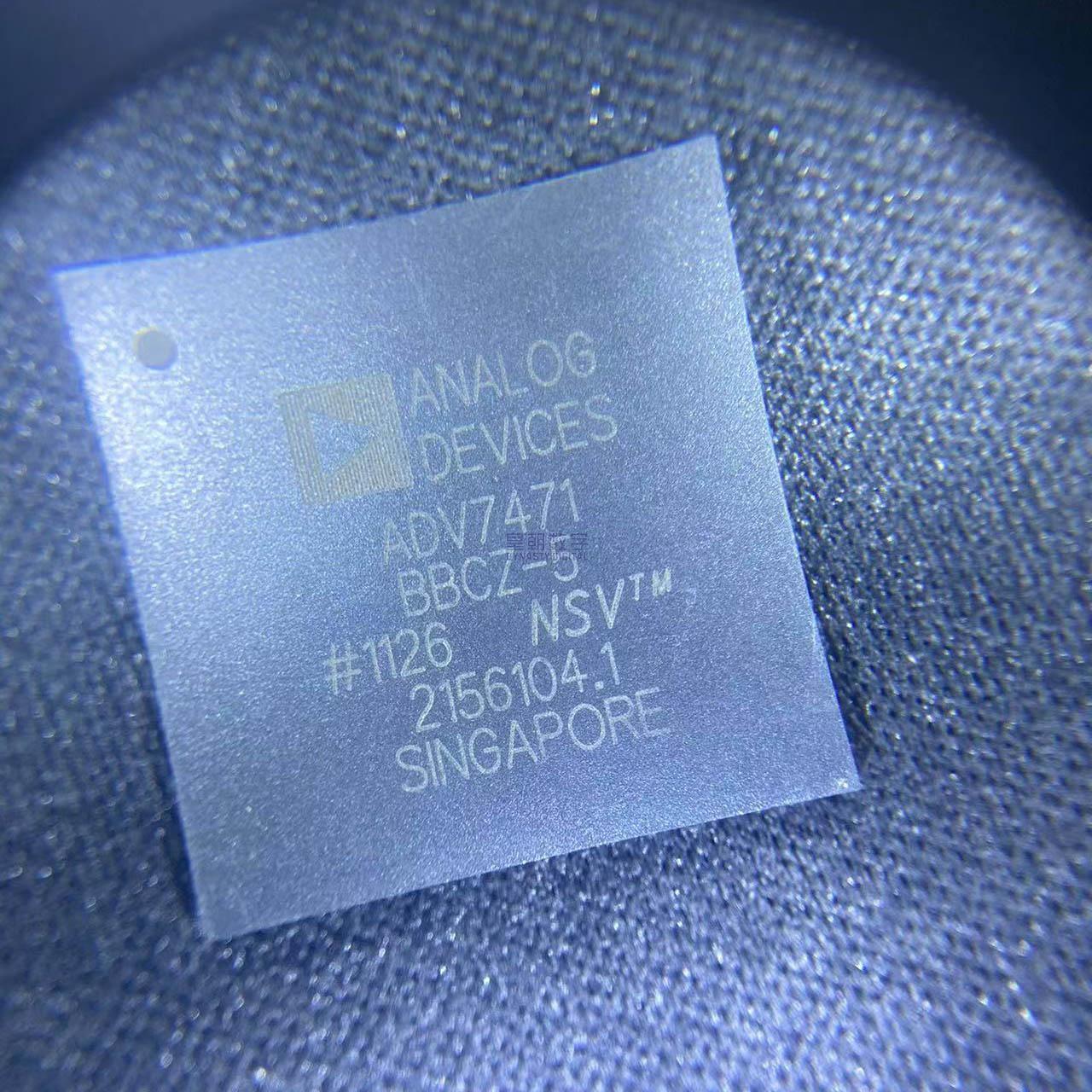

ADV7471BBCZ

Multi-format video decoder & graphics digitizer, 10-bit ADC, 140MHz, NTSC/PAL/SECAM/720p/1080i/1080p/SXGA, HDMI/DVI + HDCP, BGA, Analog Devices ADV7471.

3200

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

ADV7471BBCZ

Package：

BGA Package (BBCZ)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

AFE4490RHAT

ADUM1411ARWZ

ADUM121N1BRZ

ADS1299IPAGR

ADS1256IDBR

ADS1246IPWR

ADS1115IRUGR

ADG719BRMZ

Description

Product Overview

The ADV7471BBCZ is a high-quality single-chip multi-format video decoder and graphics digitizer from Analog Devices, packaged in a BGA package for high-density board designs. The device integrates high-performance video decoding and RGB graphics digitization capabilities, supporting a wide range of SDTV and HDTV video formats as well as computer graphics resolutions up to SXGA (1280 x 1024 @ 75 Hz). The ADV7471 includes multiple high-speed ADCs for analog video input, comprehensive video processing features including automatic format detection, 3×3 color space conversion matrix, VBI data slicing, and digital output interfaces supporting both 8-bit and 10-bit modes. Integrated features such as on-chip microcontroller, HDCP support for HDMI/DVI paths, and advanced video enhancement make the ADV7471 suitable for professional and consumer video applications.

Key Specifications

Parameter Conditions Min Typ Max Unit
ADC Resolution 10 bit
Number of ADCs 4 ch
Max Sampling Rate 140 MHz
SDTV Standards NTSC, PAL, SECAM
HDTV Support Component 480p, 576p, 720p, 1080i, 1080p
Graphics Input RGB VGA to SXGA (1280×1024 @75Hz)
Analog Inputs Multiplexed 12 ch
Anti-Aliasing Filter Integrated
Color Space Conv 3×3 arbitrary CSC matrix
Digital Output Pixel 12-bit 4:4:4 / 8-bit 4:2:2 DDR
Digital Input Port DVI/HDMI 24-bit (DVI/HDMI compatible)
HDCP Support Yes
VBI Data Slicing Teletext, CC, WSS, etc.
Auto Format Detect Yes
Package BGA (BBCZ, Pb-free)
Operating Temp Industrial -40 +85 C

Features

  • Multi-format video decoder and graphics digitizer
  • 4 x 10-bit high-speed ADCs, up to 140 MHz
  • Supports NTSC, PAL, SECAM SDTV
  • Supports 480p to 1080p component HDTV
  • RGB graphics up to SXGA (1280 x 1024 @75Hz)
  • 12-channel analog input multiplexer
  • Integrated anti-aliasing filters
  • 3×3 arbitrary color space conversion matrix
  • 24-bit digital input (DVI/HDMI compatible)
  • HDCP content protection support
  • 12-bit 4:4:4 / 8-bit 4:2:2 DDR output
  • VBI data slicer (teletext, CC, WSS)
  • Automatic input format detection
  • On-chip microcontroller
  • BGA package for high-density designs
  • -40C to +85C industrial range
  • RoHS compliant

Applications

  • Set-top boxes (STB) and IPTV receivers
  • Blu-ray and DVD players/recorders
  • Digital video recorders (DVR)
  • Video surveillance and security systems
  • Video conferencing equipment
  • Digital signage and displays
  • Professional video processing
  • Broadcast video equipment
  • Medical imaging displays
  • Automotive infotainment

The ADV7471BBCZ is a comprehensive single-chip video decoder and graphics digitizer from Analog Devices, designed for high-performance video processing in a compact BGA package. The device integrates high-resolution 10-bit ADCs (up to 140 MSPS) with advanced video decoding and graphics digitization circuitry, supporting the full range of analog video formats from SD (NTSC, PAL, SECAM) through HD (720p, 1080i, 1080p component) and RGB graphics up to SXGA. Twelve analog inputs with multiplexing allow source selection. Built-in anti-aliasing filters eliminate external filtering. The ADV7471 also features a 24-bit digital input port compatible with DVI/HDMI receivers with HDCP support. Output formats include 12-bit 4:4:4 and 8-bit 4:2:2 DDR. A 3×3 color space conversion matrix provides flexibility. VBI data slicing supports teletext, CC, WSS. Automatic format detection simplifies integration. On-chip microcontroller handles configuration. BGA package enables compact high-density board layouts.

The ADV7471 operates as a comprehensive video front-end processor converting analog video/graphics signals into processed digital pixel data. Analog video enters through the input multiplexer selecting from multiple sources and routes to integrated anti-aliasing filters. The filtered signals are digitized by high-speed ADCs (10-bit, up to 140 MHz). For composite/S-video, chroma/luma is separated and decoded per NTSC/PAL/SECAM. For component and RGB, ADCs directly digitize each component. Digitized data passes through a digital processing pipeline including color space conversion (3×3 matrix), video enhancement, and VBI data slicing. The digital input port accepts DVI/HDMI data with HDCP. Processed video outputs through the pixel port in 12-bit 4:4:4 or 8-bit 4:2:2 DDR format. On-chip microcontroller manages configuration and auto-detection.

The ADV7471BBCZ is packaged in a BGA package. Key pin groups include:

Pin Group Description
Analog Video Inputs Composite, S-video, component, RGB graphics inputs
ADC Reference Voltage reference and ADC decoupling pins
Pixel Output Port 12/8-bit digital pixel output data (P[11:0])
Digital Input Port 24-bit digital input for DVI/HDMI (D[23:0])
Control Interface I2C/SPI control pins (SCL, SDA/CS, SCLK)
Clock/Sync Pixel clock, HS, VS, FIELD/DE signals
Power Pins Multiple VDD (analog, digital, PLL) and GND
HDCP Interface HDCP control and status pins

Note: For exact pin assignments, refer to the official ADV7471 datasheet.

  • Set-top boxes (satellite, cable, IPTV)
  • Blu-ray/DVD players and recorders
  • Digital video recorders (DVR/PVR)
  • Video surveillance and security systems
  • Video conferencing endpoints
  • Digital signage and display controllers
  • Professional video processing equipment
  • Medical imaging display systems
  • Automotive infotainment head units
  • Gaming consoles
Model Manufacturer Key Difference
ADV7401BSTZ Analog Devices Similar, 100-LQFP package, same series
ADV7842BBCZ Analog Devices Newer, HDMI 1.4 + video decoder, BGA
ADV7844KCPZ Analog Devices HDMI/CVBS/VGA/YPbPr, 64-LFCSP
ADV7604BBCZ Analog Devices HDMI/CVBS/YPbPr/VGA decoder, BGA
TVP5158PFP Texas Instruments 4-ch NTSC/PAL decoder, TI alternative
Recommend Parts

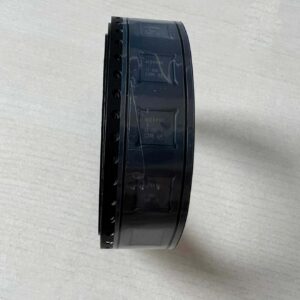

AFE4490RHAT

Pulse oximeter AFE, 22-bit ADC, 110dB dynamic range, 50pA input noise, LED driver 50-200mA 8-bit, analog + digital ambient cancel, <2.3mW, SPI, VQFN-40, TI AFE4490.

Brand:

Package:

VQFN-40 (RHA, 6mm x 6mm)

In stock:

6500pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

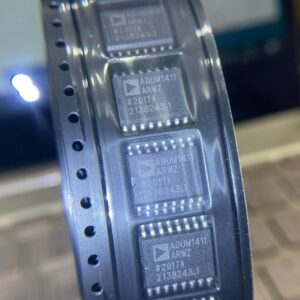

ADUM1411ARWZ

4-channel digital isolator, 2.5kV rms, 2/2 direction, 10Mbps, 75ns delay, 25kV/us CMTI, 2.7-5.5V, default output control, 16-SOIC-W, ADI iCoupler.

Brand:

Package:

16-Lead SOIC Wide Body

In stock:

8500pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

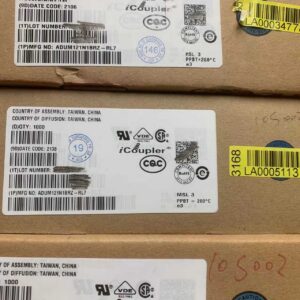

ADUM121N1BRZ
