ENC624J600-I

The ENC624J600-I is a highly integrated stand-alone Ethernet controller from Microchip Technology that provides full 10/100 Mbps Ethernet connectivity for embedded systems with minimal external components and minimal host processor overhead. As the successor to the popular ENC28J60 (10 Mbps) and ENC424J600 (100 Mbps) family, the ENC624J600 doubles the on-chip buffer RAM to 24 KB and adds a second Ethernet port, making it suitable for more demanding networked embedded applications. The device integrates a complete IEEE 802.3 compliant Ethernet Media Access Controller (MAC) and Physical Layer (PHY) transceiver on a single chip, supporting both 10BASE-T and 100BASE-TX standards at full and half duplex. Auto-negotiation automatically selects the best link speed and duplex mode, while Auto-MDIX eliminates the need for crossover cables by automatically detecting and correcting cable wiring. A key feature of the ENC624J600 is its flexible host interface options: a high-speed SPI interface up to 20 MHz for simple connection to any microcontroller with SPI peripheral, and an 8/16-bit parallel slave interface for higher throughput connections to 16-bit or 32-bit processors. The 24 KB of on-chip SRAM is partitioned between transmit and receive buffers, with the exact division configurable by the user. Hardware-assisted features including automatic packet padding, CRC generation and checking, and automatic retransmission reduce the processing load on the host MCU, making it feasible to run TCP/IP stacks even on low-cost 8-bit microcontrollers. The ENC624J600 also provides MII (Media Independent Interface) and RMII (Reduced MII) connectivity on its second port, allowing it to connect to external PHYs, switches, or other MAC devices. A 25 MHz clock output can be used to clock the host microcontroller, saving the cost of a separate crystal. With its small 64-pin TQFP footprint, single 3.3V supply, and industrial temperature rating, the ENC624J600-I is an excellent choice for adding Ethernet connectivity to a wide range of embedded applications including industrial control, home automation, IoT devices, POS terminals, and networked sensors.

The ENC624J600 functions as a complete hardware Ethernet controller that offloads the lower layers of the Ethernet protocol stack from the host microcontroller. At the physical layer (PHY), the device incorporates a 10/100 Base-T/TX transceiver that drives and receives differential analog signals on the twisted-pair cable (via an external transformer/connector module). The PHY performs all the analog front-end functions including line driver, receiver, PLL for clock recovery, and encoding/decoding (Manchester encoding for 10 Mbps, MLT-3 encoding for 100 Mbps). Auto-negotiation is handled automatically by the PHY, exchanging link capability information with the link partner to establish the best common speed (10 or 100 Mbps) and duplex mode (full or half). Auto-MDIX monitors the received signal quality and automatically swaps the transmit and receive pairs if a crossover or straight-through cable mismatch is detected. The Media Access Controller (MAC) layer handles the data link layer functions: it assembles outgoing data into proper Ethernet frames by adding preamble, SFD, source/destination addresses, length/type field, payload, and FCS (Frame Check Sequence — CRC-32); for incoming frames, it performs address filtering, CRC verification, and error checking. The MAC supports both full-duplex and half-duplex operation, with appropriate handling of CSMA/CD (Carrier Sense Multiple Access with Collision Detection) for half-duplex mode. The 24 KB on-chip SRAM serves as a shared memory buffer for transmit and receive packets: the host writes outgoing packet data to the transmit buffer region through the SPI or parallel interface, and the DMA engine transfers the data to the MAC for transmission; received frames are automatically stored in the receive buffer region by the DMA, where the host can read them later. The host interface supports two modes: SPI mode uses standard SPI protocol (clock, data in, data out, chip select) with commands for register access and DMA memory access; parallel slave mode provides an 8-bit or 16-bit multiplexed or demultiplexed address/data interface similar to a standard SRAM, achieving higher throughput than SPI. The ENC624J600 also includes an interrupt controller that can generate a host interrupt on various events (packet received, transmit complete, link status change, error conditions, etc.), allowing the host to poll less frequently and reduce power consumption. Overall, the architecture provides a complete Ethernet solution that requires only an external magnetics module, crystal, and host microcontroller — with the ENC624J600 handling all the low-level Ethernet details in hardware.

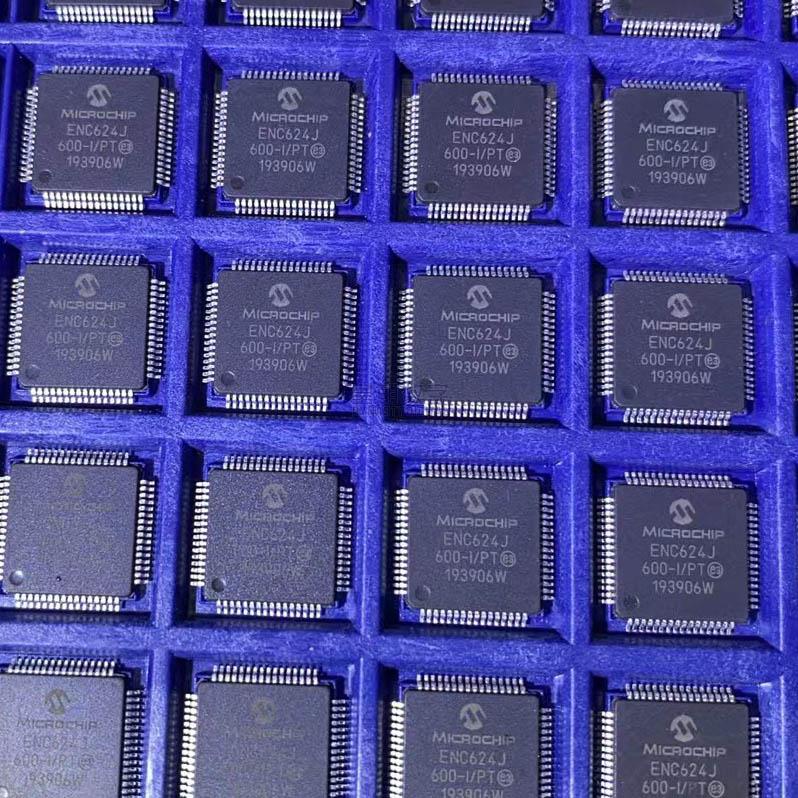

The ENC624J600-I is available in a 64-lead TQFP package. Key pin groups:

Note: Exact pin assignments vary by package variant and interface mode. Refer to the ENC624J600 datasheet for complete pin descriptions, electrical specifications, and reference schematics.

• Embedded Ethernet & IoT Devices: Provides Ethernet connectivity for 8-bit, 16-bit, and 32-bit microcontroller-based embedded systems and IoT endpoints, enabling TCP/IP, UDP, HTTP, MQTT, and other network protocols
• Industrial Control & Automation: Used in PLCs, remote I/O modules, industrial sensors, and factory automation equipment requiring Ethernet/IP, Modbus TCP, or PROFINET connectivity at the field level
• Home Automation & Smart Home: Deployed in smart thermostats, lighting controllers, security cameras, and home gateway devices for Wi-Fi-Ethernet bridging and local network connectivity
• POS Terminals & Payment Systems: Used in point-of-sale terminals, card readers, and payment kiosks to provide wired Ethernet connectivity for transaction processing and secure payment network access
• Networked Sensors & Data Acquisition: Enables Ethernet connectivity for remote sensor nodes, data loggers, and environmental monitoring systems, supporting Modbus TCP, SNMP, and custom data acquisition protocols
• Serial-to-Ethernet Converters: Forms the core of RS232/RS485-to-Ethernet gateway devices that allow legacy serial equipment to connect to TCP/IP networks via virtual COM port or socket-based protocols
• Building Automation & HVAC: Used in building management systems, HVAC controllers, lighting control panels, and access control systems for BACnet/IP and other building automation network protocols
• Security & Surveillance: Provides Ethernet connectivity for IP cameras, access control panels, alarm system communicators, and video encoders requiring reliable wired network connections
